Full Nelson, 2-Bike Carrier Truck Bed Mount V-Rack (expandable to 6)
Jump to full description ⇨
Ships unassembled, via .
Shipping times are not guaranteed. If you would like expedited shipping please call our office at (719) 630-3800 for availability and a custom quote. See Shipping Policies for details about shipping and receiving.
Domestic no-tool truck bed mount two bike carrier with expandable capacity for up to six bikes. The full cross bed bar is position adjustable along the truck bed and carries bikes above the side walls without blocking the truck bed interior space. Featuring a rotating V-Wing® with three positions locations for flexible cargo management and convenient access to bikes for loading and unloading. Enjoy complete security with the RingLocker™ system that locks the bicycles to the carrier and separately, the carrier to the truck.
Features & Specifications
- Fits domestic Ford, Chevrolet, and Dodge truck beds using position adjustable full cross bed bar
- Secures across the truck bed width with position adjustable 72 inch cross bed bar and attachments for non-channel based truck beds
- Carries two bicycles above the bed with additional built-in sockets for two or four bike add-on capacity using modular SpinWing™ accessory (SpinWing 2-Bike Add-Ons required, sold separately part #B01823)
- Supports all size and frame style bicycles by the wheels with adjustable wheel cradles for varying fit
- Nelson V-Wing® 360 degrees for convenient loading and unloading access of bikes, and for bike position flexibility on cross bar (bikes may position in-line or perpendicular to cross bed bar when using center socket)
- Zero-G 4-Point adjustable wheel grip bike freeze technology for motionless wheel touch only support include four upper wheel cradles with rubber straps (for wheel suspension) and four lower sway stop cradles with rubber straps (for wheel base)
- RingLocker security system includes a lock with two cables (6ft and 3ft) for locking bikes and Nelson rack to vehicle bed
- Cushion pads protect bike-to-bike or rack contact
- Modular design weighs 66 lbs with removable wing support arms for compact storage
- Maximum load weight rating is 35 lbs per bicycle (70 lbs overall capacity per V-Wing)
- Rated for improved road use (Nelson Tie-Offs accessory required for off-road use, part #B00833)
- More Models for Two, Four, and Six Bike Transport Available
No Tool Installation
No drilling, no modifications and no tools necessary. The Full Nelson attaches to any domestic truck bed sill using a tight grip mount design.
Expandable Capacity
Using the SpinWing-add-on, the Full Nelson has expandable capacity for up to six bikes.
*Additional Spin Wings Sold Separately.
Compare Truck Mounts
Half Nelson
Part Number: B01809
Bike Capacity: 2 Bikes
Load Limit: 35 lbs per bike
Expandable Bike Capacity: N/A
Mounting Style: Universal (truck beds without C-Channels Mounts)
No-Tool Mounting: ✔
Locks to Truck Bed: ✔
Locks Bikes to Rack: ✔
Boat & Kayak Mounts: N/A
Fat Bikes: ✔*
*Requires Add-on
Half Nelson - Channel
Part Number: B01816
Bike Capacity: 2 Bikes
Load Limit: 35 lbs per bike
Expandable Bike Capacity: N/A
Mounting Style: C-Channel Style Track Mounts
No-Tool Mounting: ✔
Locks to Truck Bed: ✔
Locks Bikes to Rack: ✔
Boat & Kayak Mounts: N/A
Fat Bikes: ✔*
*Requires Add-on
Full Nelson
Part Number: B01427
Bike Capacity: 2 (Expandable)
Load Limit: 35 lbs per bike
Expandable Bike Capacity: ✔*
Mounting Style: Universal (truck beds without C-Channels Mounts)
No-Tool Mounting: ✔
Locks to Truck Bed: ✔
Locks Bikes to Rack: ✔
Boat & Kayak Mounts: ✔*
Fat Bikes: ✔*
*Requires Add-on
Three-Quarter Nelson
Part Number: B01533
Bike Capacity: 2 (Expandable)
Load Limit: 35 lbs per bike
Expandable Bike Capacity: ✔*
Mounting Style: Universal (Add-on Available for C-Channel Mounting)
No-Tool Mounting: ✔
Locks to Truck Bed: ✔
Locks Bikes to Rack: ✔
Boat & Kayak Mounts: ✔*
Fat Bikes: ✔*
*Requires Add-on
Full Nelson Tonneau Adapter
Shop All Bicycle Carriers
Shop Carrier Accessories
Good overall. Two disappointments though, several of the plastic parts arrived from shipping broken. Also we have only used it once on a camper trip with rain and it’s now has rust.
Hi Christopher, Sorry to hear about those broken and rusted parts. We will have customer service contact you ASAP to get those parts replaced.

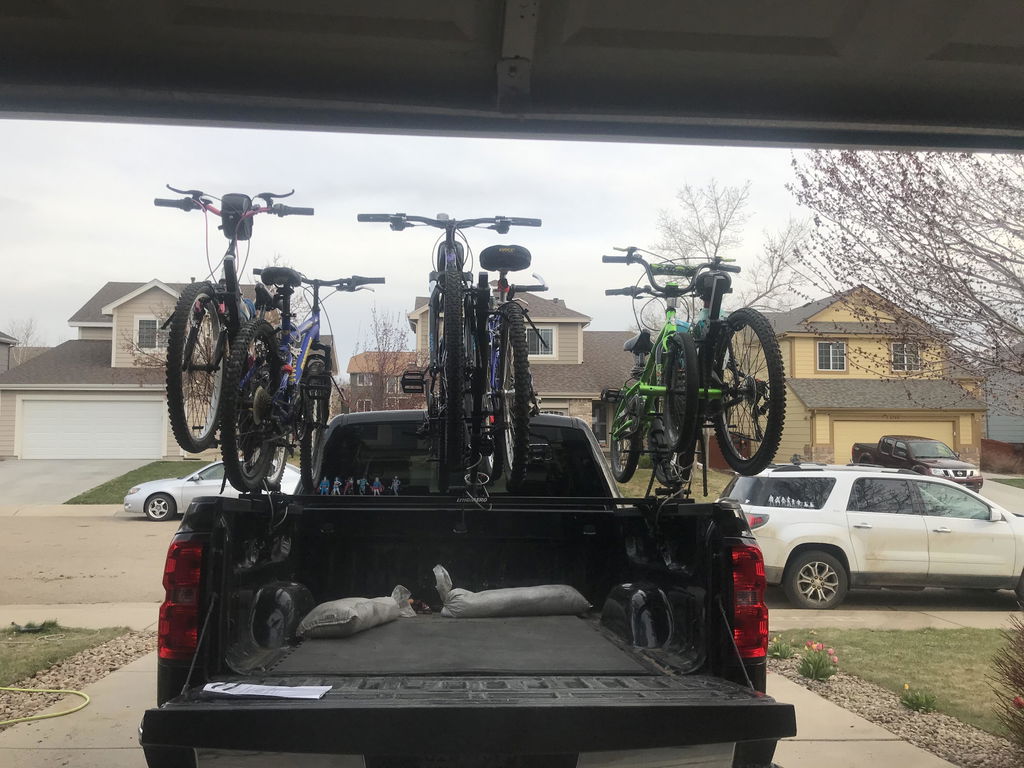

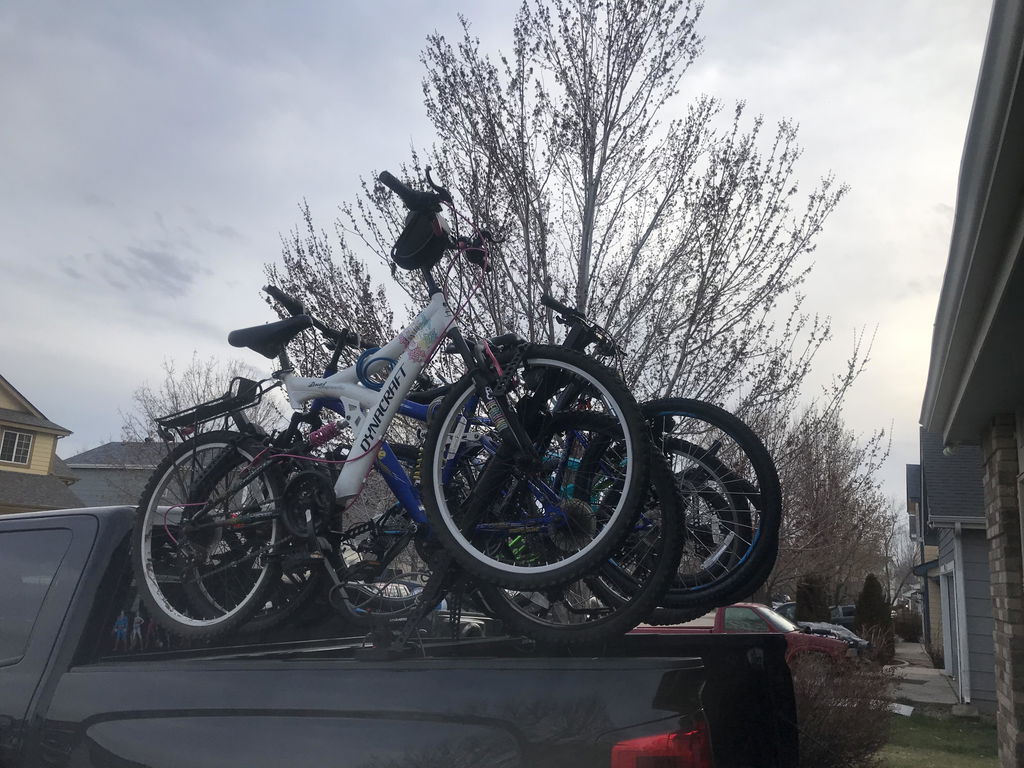

It’s a great rack. Took a bit to get everything set up just right but now I can load three bikes and hit the road in less than 10 minutes. Love being able to drag my Cornhole boards, generators, camp chairs and fire wood in the bed of the truck and the bikes are up and out of the way.
A well designed product. I bought this so I could still tow a trailer and bring my bikes or still use the bed of my truck. Easy to use and keeps bikes secure.
A note mine was damaged in shipping and aero immediately sent me out a replacement. Not only is their product great their customer service is amazing. Would buy again and recommend buying from this company.
The best use of space on a truck for a bike rack! Plus a team that really helps the customary!!
I had looked at a Yakima and Thule system and just wasn’t impressed with the quality for the cost. I did some research on Let’s Go Aero and called them a couple of times with questions I had about this system. The customer service was top notch and I decided to order the Full Nelson for my Ford F-150. I’m beyond impressed with the quality of the material. It came well packaged and arrived in about 10 days. It took me about an hour to initially set up the rack and get my large frame 29er on it and to get on the road. The bike sits well above the truck bed and bed sides and it didn’t move at all at 80 mph down the highway. I found it easy to get on and off my truck from the ground (I’m fairly tall at about 6’1). Having access to my truck bed while the bikes are attached was important for my needs. This gives me that and I’m so happy with this purchase. I definitely recommend this system.
I have a ford F150 short bed and am looking to put four adult bikes on the rack. What set up do I need? Also I have a roll op Tonneau cover, would I still be able to use the bike racks when cover is closed or will I have to travel with cover open?
Hello Angel,
For mounting 4 bikes onto your Ford F-150 domestic truck bed, you will need either the Full Nelson (B01427) or Three-Quarter Nelson (B01533) bike rack, and an additional SpinWing Add-On (B01823). The difference between the bike racks come down to preference on how you'd like the rack mounted onto the bed- either with the two fixed position of Three-Quarter, or the more flexible mounting bar of Full Nelson. Our only tonneau cover solution at this time is for the Full Nelson and requires a cover with a C-channel system to mount the rack into the channels versus the flat bed side walls. Otherwise, the racks will obstruct the tonneau cover's path along the side walls and preventit from fully sealing.
Why would I need a Nelson Tie-Off Kit? Is the full Nelson unstable when hauling?
Most people don't need it. The tie-off kit is only used increasing the weight limit for some accessories like our kayak mounts or for off-road use. Out of the box, the Full Nelson is rated for use on 'improved roads" (dirt roads with wash boards etc.).
Is drilling of holes required to attach to side rails of 2023 Chevrolet Silverado truck
No, there is absolutely no drilling required. In fact, the Full Nelson installs and assembles completely tool-free.
