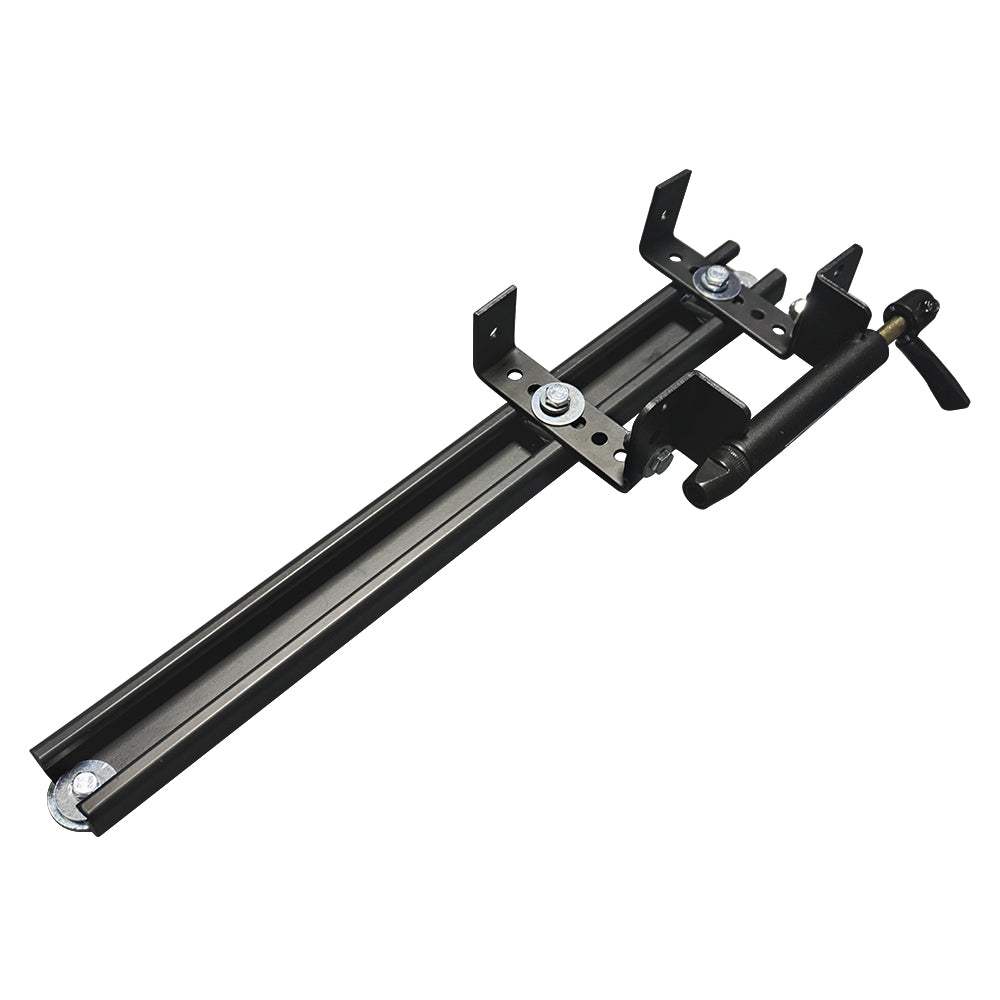

All Parts Included

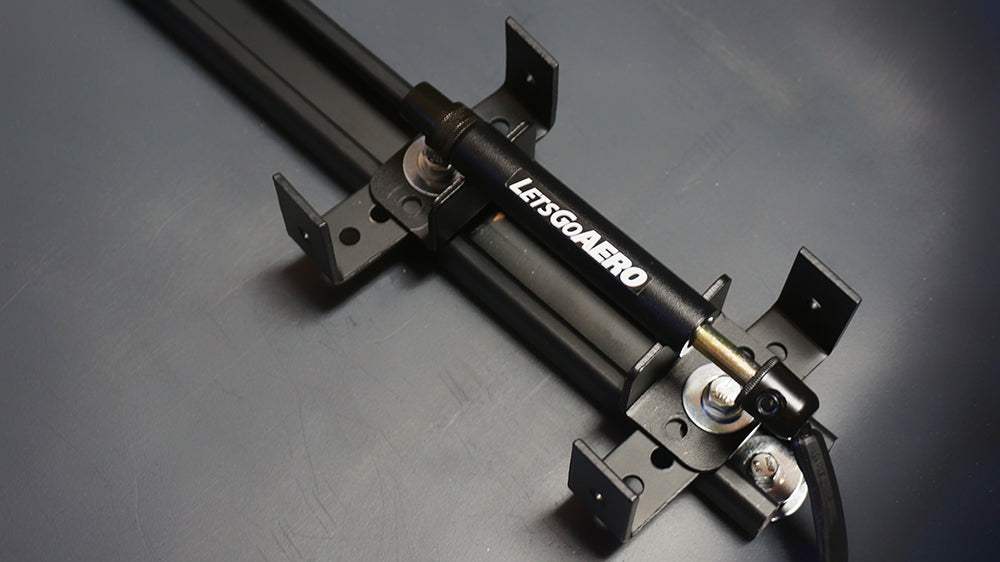

Fork Mounts are adjustable to fit bicycle of most sizes

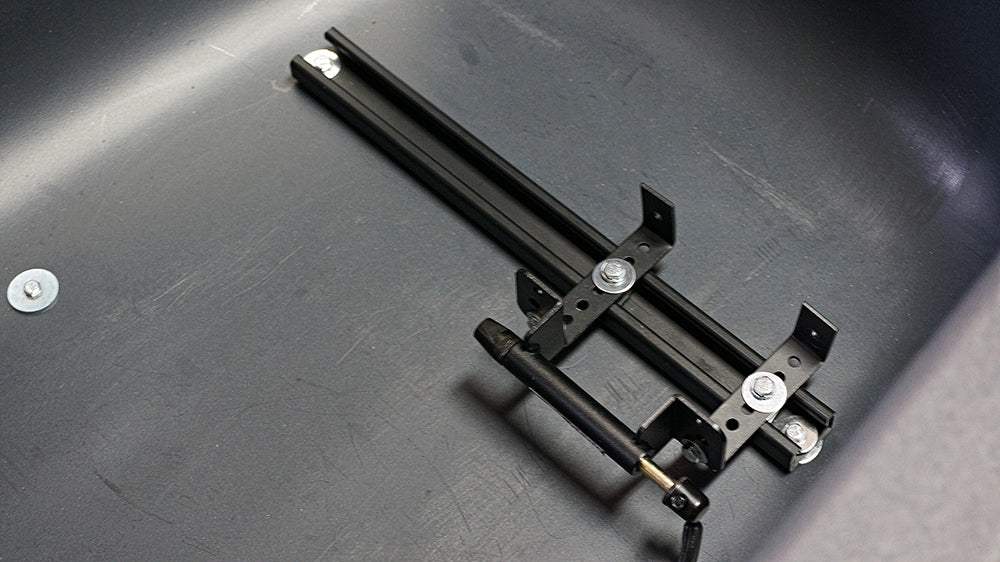

Bicycle Fork Mounts installed inside of the enclosed GearSpace Cargo Carrier
Multiple Adjustments Positions fit bicycle of most sizes
Multiple Adjustments Positions fit bicycle of most sizes
All Parts Included
Bicycle Rear Tire Stabilizer
Bicycle Rear Tire Stabilizer attached to bicycle wheel
Multiple Adjustments Positions fit bicycle of most sizes

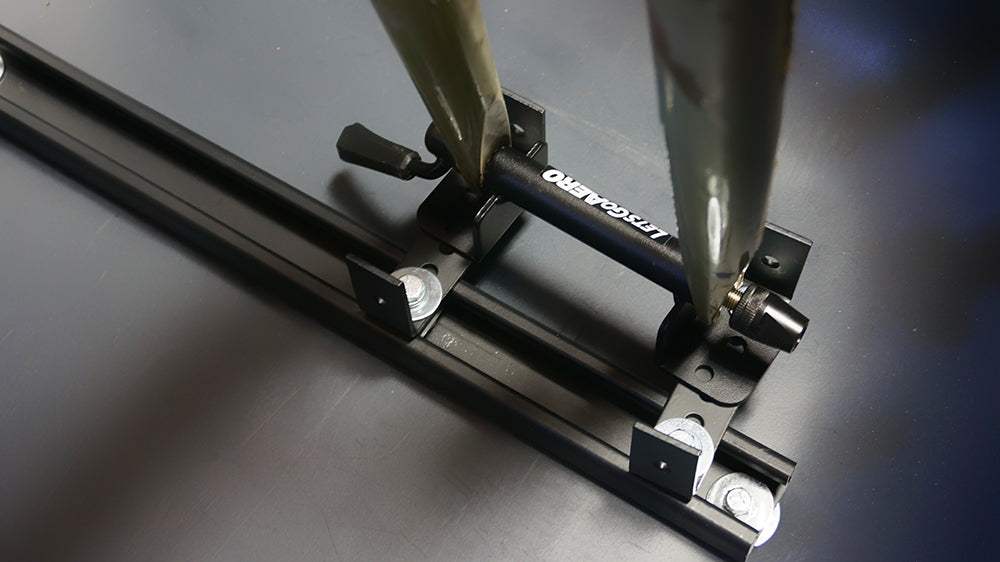

Bicycle Fork installed into the GearSpace Cargo Carrier
Bicycles fit nice underneath the enclosed hardshell lid of the GearSpace Cargo Carrier
All Parts Included
Fork Mounts are adjustable to fit bicycle of most sizes
Bicycle Fork Mounts installed inside of the enclosed GearSpace Cargo Carrier
Multiple Adjustments Positions fit bicycle of most sizes
Multiple Adjustments Positions fit bicycle of most sizes
All Parts Included
Bicycle Rear Tire Stabilizer
Bicycle Rear Tire Stabilizer attached to bicycle wheel
Multiple Adjustments Positions fit bicycle of most sizes
Bicycle Fork installed into the GearSpace Cargo Carrier
Bicycles fit nice underneath the enclosed hardshell lid of the GearSpace Cargo Carrier

GearSpace Bike Mount Kit

$129.00 USD

#HGK963

Item is in stockHurry! Low inventoryItem is out of stock Item is unavailable

The GearSpace Bike Mount Kit attaches one bicycle to interior of the GearSpace enclosed cargo carrier, securing the bicycle in a fixed, upright position using a quick-release fork mount and a rear bungee tire stabilizer that is adjustable for a variety of bicycle sizes.

 Features & Specifications

  • M9 x 116mm Quick Release Fork Mount with mounting hardware and C-Channel Track for bicycle fork mounting (front wheel removal required).
  • Four height and length adjustable Brackets provide flexible positioning of bicycles of most sizes.
  • Length adjustable Bungee and D-Ring secures the rear tire and free tire from transit sway.
  • For standard bicycle (mountain or road) with frames yp to 52in length (frame & rear wheel) and handle bars up to 25in. in width.
  • Sold individually for one bicycle, up to sizes as specified.

View and download the Manual

Ships unassembled, via UPS Ground.

Shipping times are not guaranteed. If you would like expedited shipping please call our office at (719) 630-3800 for availability and a custom quote. See Shipping Policies for details about shipping and receiving.

Customer Reviews

Based on 1 review
0%
(0)
0%
(0)
100%
(1)
0%
(0)
0%
(0)
D
David S.
Didn't work with 26" handlebars

The bike mount didn't work too well in my case. But that may be because my handlebars are 26" wide, which is about the limit for being able to close the lid, and that is with a 30-7/8" height from the fork mount to the top of the handle bars. With a bike length of 54-1/2" (back wheel to fork), it fits so snugly that I don't even need the mount and the bike stays in place. However, I didn't like the point loading of the fork on the bottom of the GearSpace, so I ordered the bike mount. But in order to get the mount to work, I had to straighten out one end of the mounting brackets and then bend the bracket downwards about 25 deg. to minimize the skewer height so that the lid can still close. Good thing the steel was ductile enough to take the abuse. I only had a vice-grip plier and a hammer, so the end result looks bad, but at least it worked.

Hi David, Sorry to hear the Bike Mounts didn't quite work for you out of the box but we are glad you were able to make it work in the end. 26in is right at the line where the handlebars do get too big for the GearSpace.
