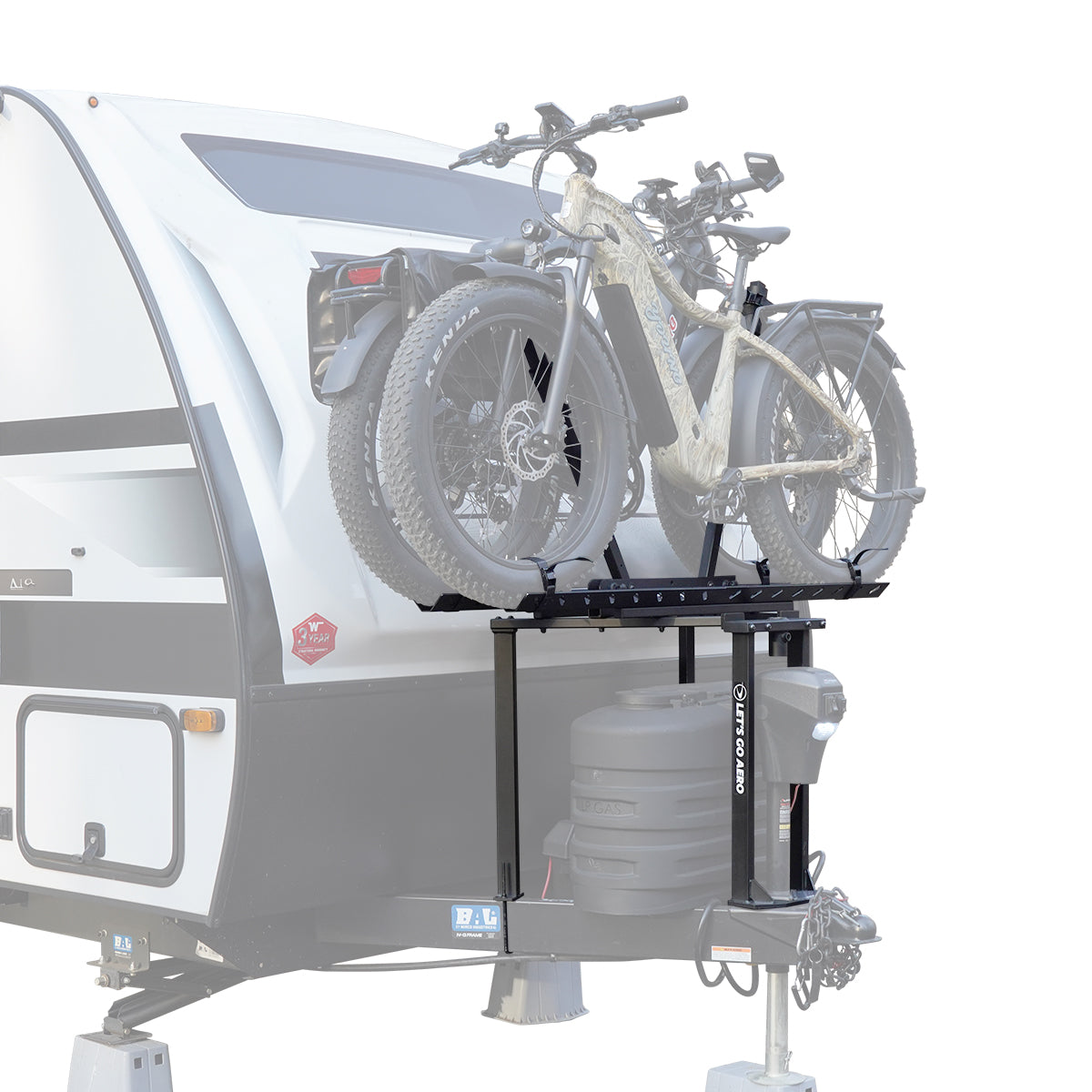

The Jack-E brings Jack-It A-frame carriers to new heights with a heavy-duty platform tower and tray mounts designed for electric bikes up to 80 lbs. Featuring adjustable, folding wing supports with soft foam bumpers for securing and protecting even the bulkiest of bike geometries. Transport ebikes in a stable environment where you can see them from a glance in the rearview mirror.

Features:

  • Securely transports two bikes up to 80 lbs each on RV travel trailer A-frame
  • Folding V-wings for adjustable upright support of odd bike geometries including those with racks or fenders
  • 55 inch steel trays mount to Jack-IT tower, V-shaped to contain and support bike tires up to 4.5 inches
  • Includes eight CAM buckle straps for securing bikes to V-wings and trays
  • Carries two bikes mounted above the electric jack and front wind manual jack of A-frame cargo trailers and RV travel trailers
  • Fits front wind manual jacks and electrical jacks up to 23" height from bolt plate bottom
  • Requires 24.5in of clearance measured from the center of the jack shaft to the trailer.
  • Additional receiver port on tower for use of Lifter™ accessory load assist (P/N B02790 sold separately)

Bike Capacity Two bikes
Weight Capacity (Per Bike) 80 lbs
Support Arms Folding V-wings for adjustable upright support
Tray Length 55"
Tire Compatibility Supports tires up to 4.5"
Straps Eight CAM buckle straps: ✓ Included
Mounting Position Mounted above the electric jack and front wind manual jack
Jack Compatibility Fits jacks up to 23" height from bolt plate bottom

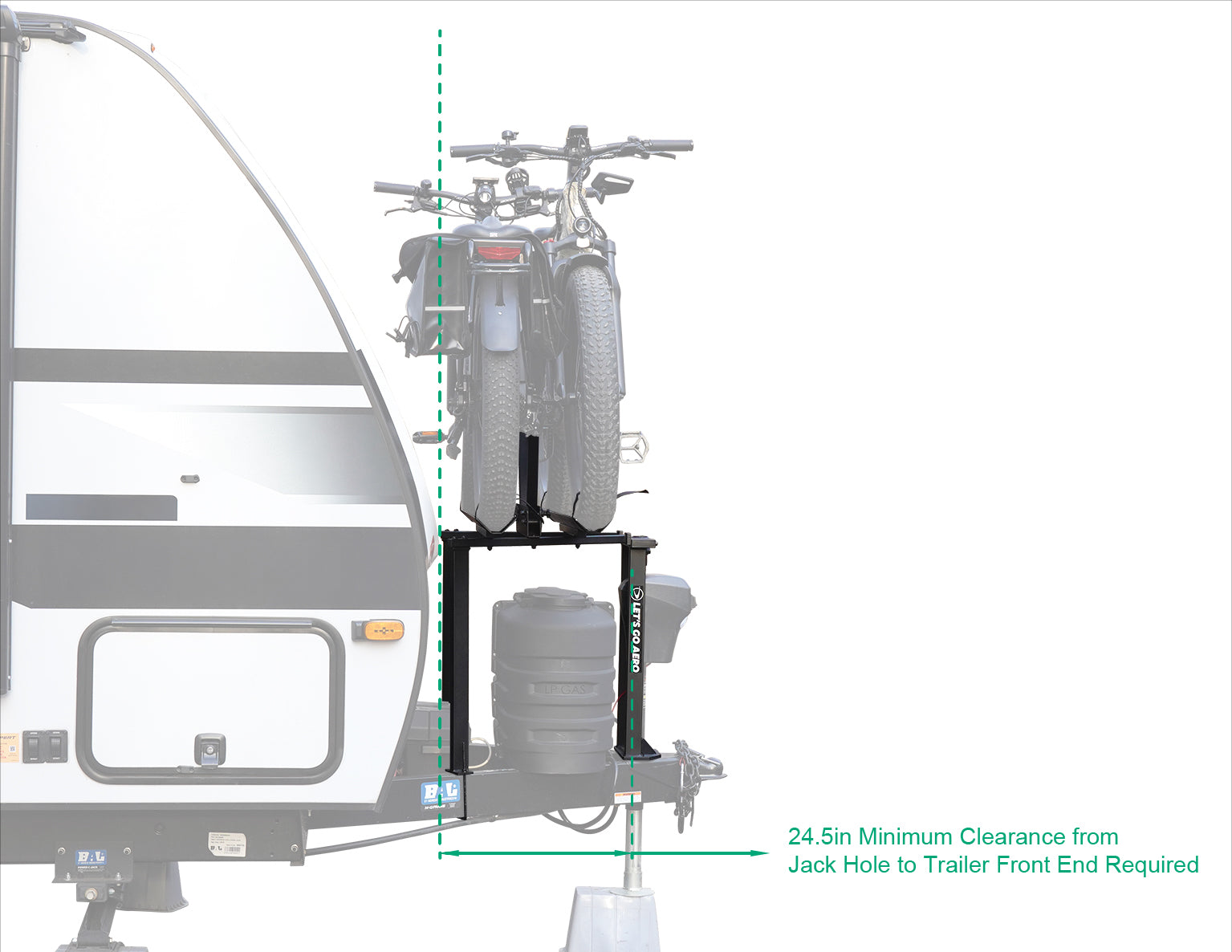

Clearance Requirement Requires 24.5" from center of jack shaft to trailer
Receiver Port ✓ Included (for use with Lifter™ accessory, P/N B02790 sold separately)
Coupler Requirement Requires a coupler with a structural bottom

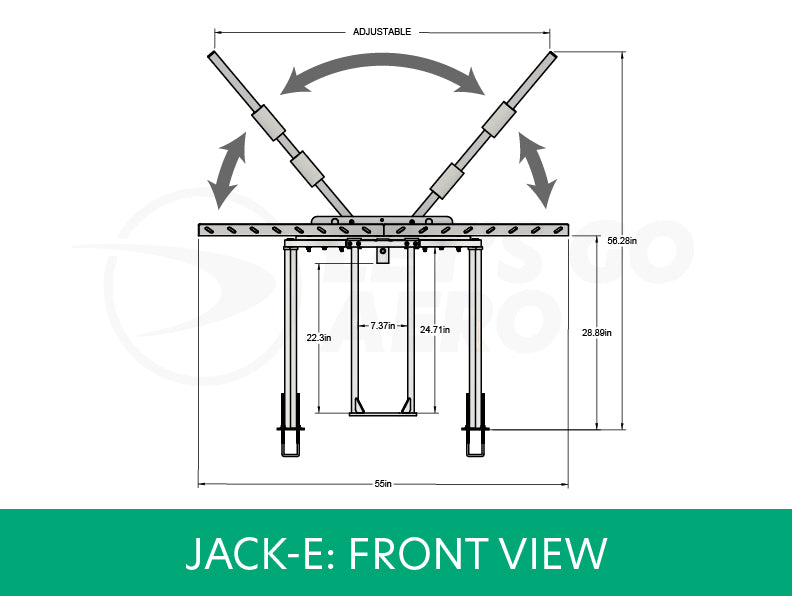

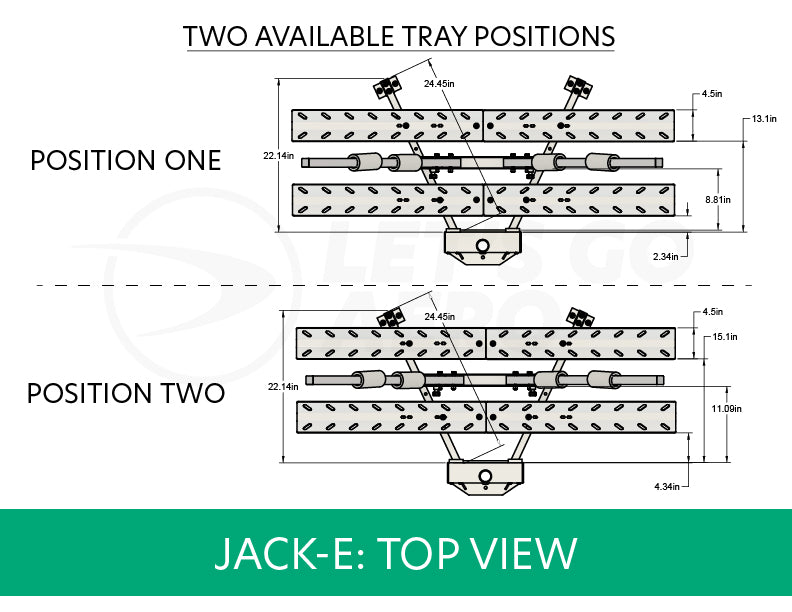

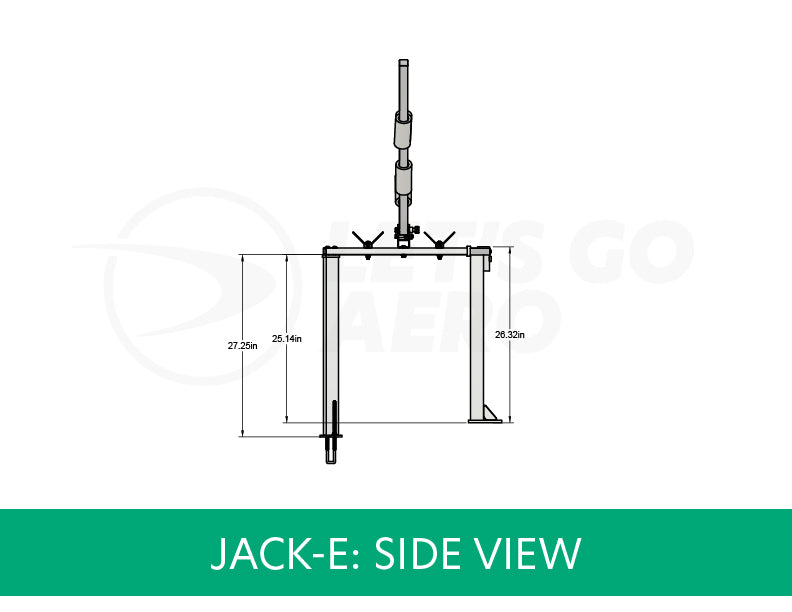

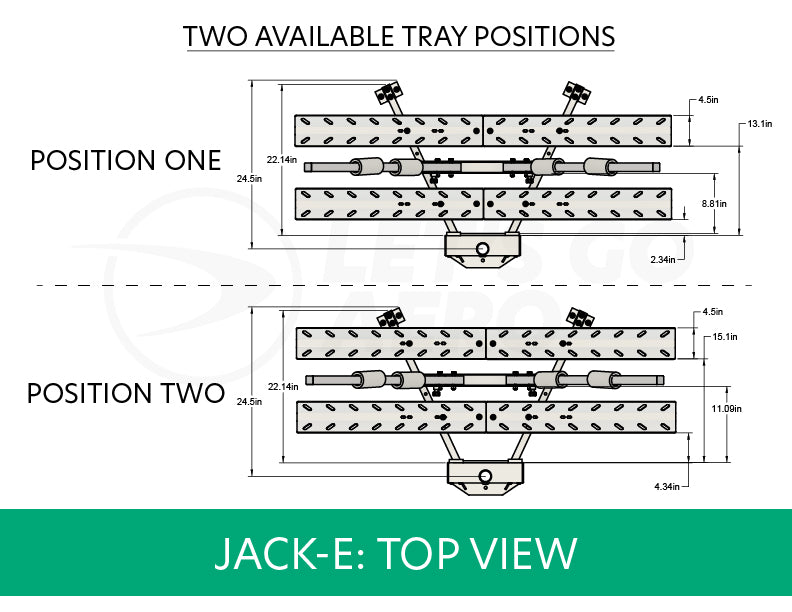

Product Images (click to enlarge) Jack-IT-E dimensions view 1 Jack-IT-E dimensions view 2 Jack-IT-E dimensions view 3
Jack-E Image

Jack-E

SKU: #B02769

DOWNLOAD THE MANUAL
