Transport electric tricycles, quadricycles, and their recumbent cousins with this highly versatile hitch carrier that is loaded with indispensable features, designed for e-assist bikes weighing up to 80 lbs.

Features & Specifications

  • Modular tray mount platform renders two 72” aluminum wheel trays and one 36" center wheel tray, and two modular 72” ramp trays for load support; ramp trays secure to carrier for transit
  • Versatile fit for all frame styles, wheel configurations, and wheel centers up to 67” length wheel bases; track width adjustable trays up to 36 inches
  • Supports up to 4.5" tires on self centering V-trays and ramps; bike and ramps secure with cam lock straps to slotted trays
  • Heavy-duty steel TwinTube folding hitch platform slides out for rear hatch, tailgate, and RV van door clearance; folds up for parking and garage clearance
  • LED taillights included for 45" rear rack length from hitch face DOT compliance; lights reposition to rearward facing when rack is folded up for night visibility
  • Empty weight: 80 lbs modular design for user-friendly handling and compact storage
  • Weight capacity: 80 lbs maximum payload
  • Cable and two locks for locking bikes to rack and rack to vehicle
  • Two Silent Hitch Pins for quiet and stable security in hitch
  • Requires 2 inch receiver hitch with Class III tow rating
  • Approved for travel trailer & flat-tow behind vehicles
  • Assembly required
Track Width Adjustability Up to 36"
Modular Ramps ✓ Included (Two 72" long steel wheel trays and ramps)
Maximum Tire Width 4.5"
Maximum Wheel Base 67"
Weight Capacity Motorized Vehicles: TriQuad - 75 lbs
Dry Weight: TriQuad - 80 lbs (Separable into 30 lbs Spine and 50 lbs Frame)
TwinTube Folding Hitch Platform ✓ Included (Heavy-duty, slides out and folds up)
Locking Mechanism ✓ Included (Cable and two locks for bikes and rack security)
Silent Hitch Pins ✓ Included
Hitch Receiver Fit 2" (Class III tow rating recommended)
RV Compatibility ✓ Approved

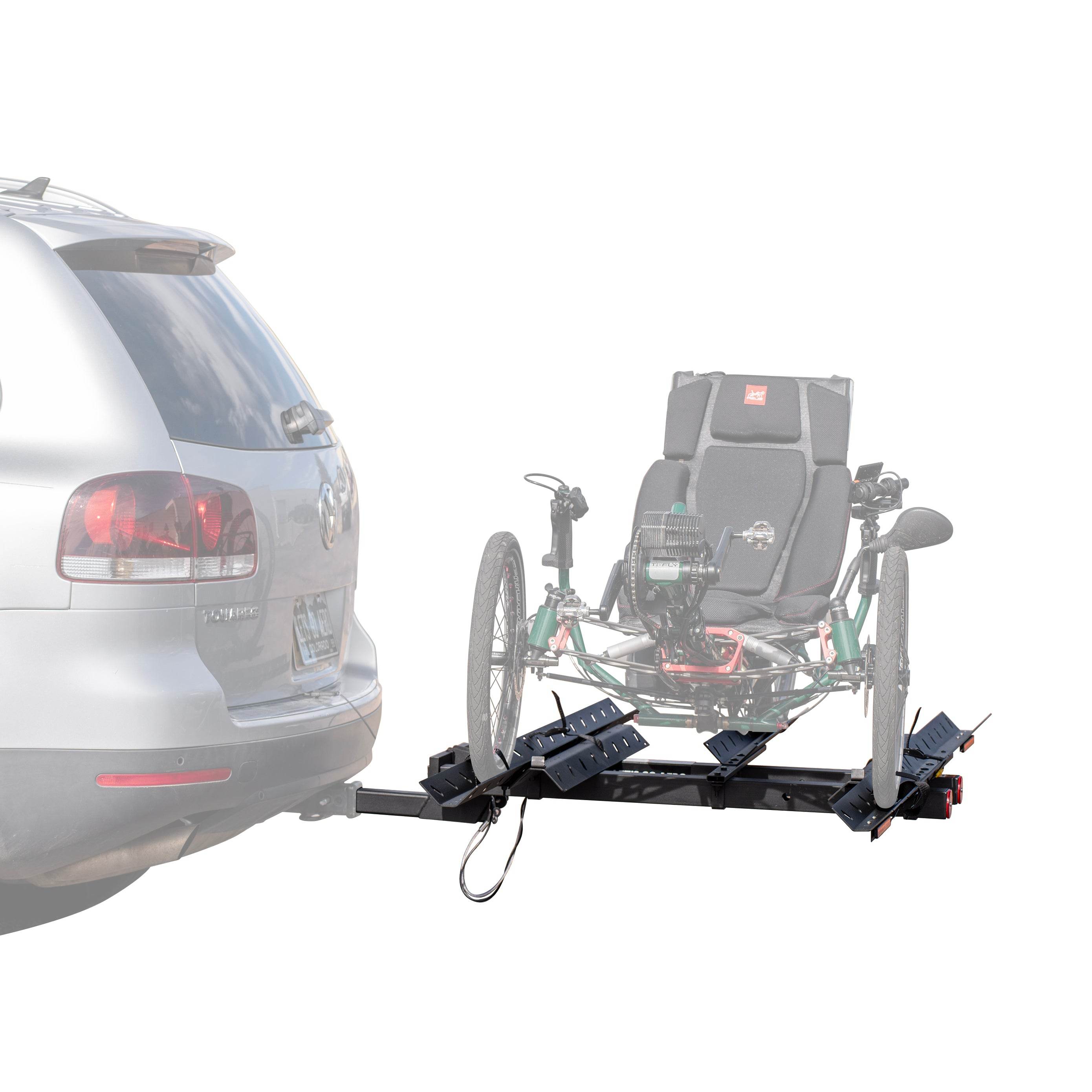

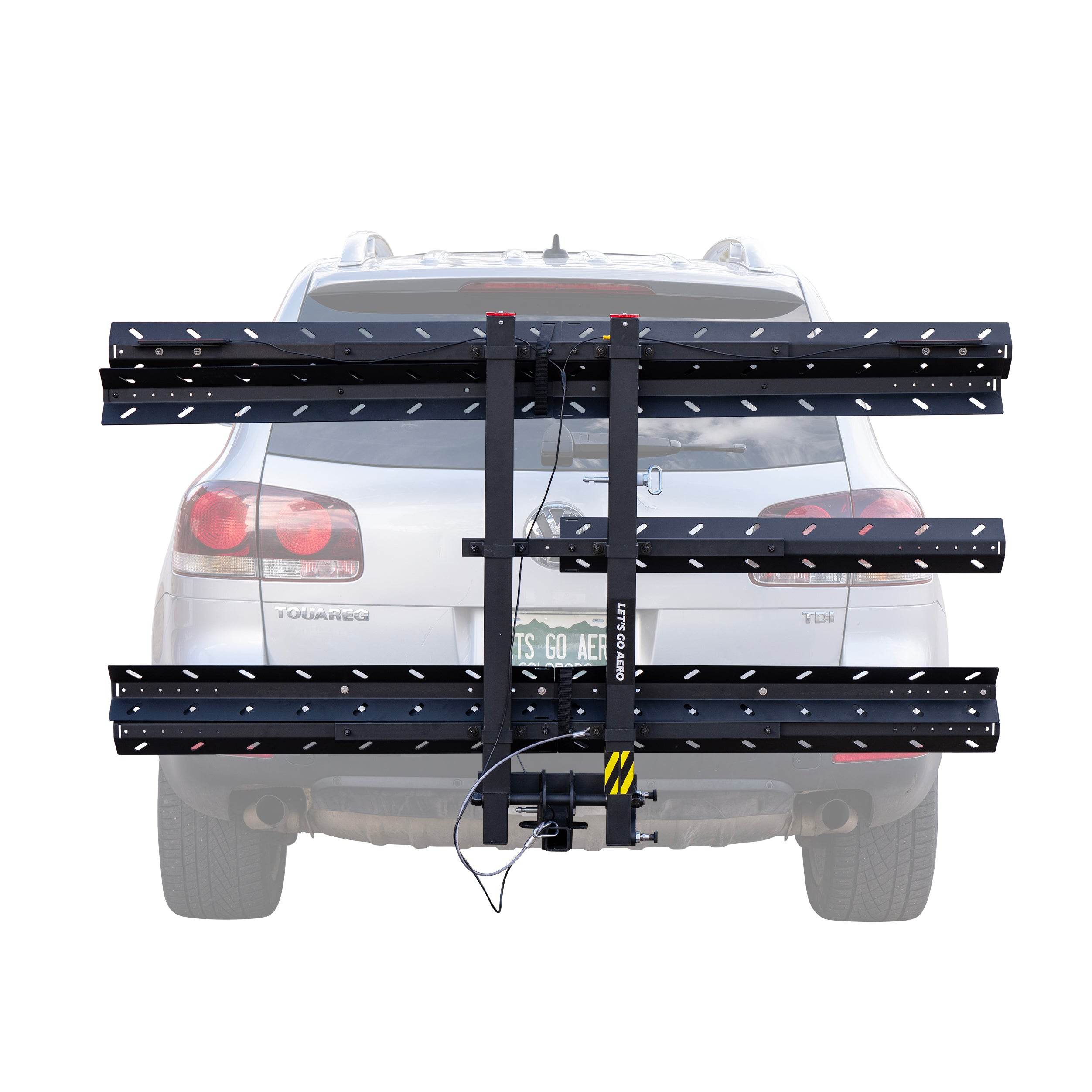

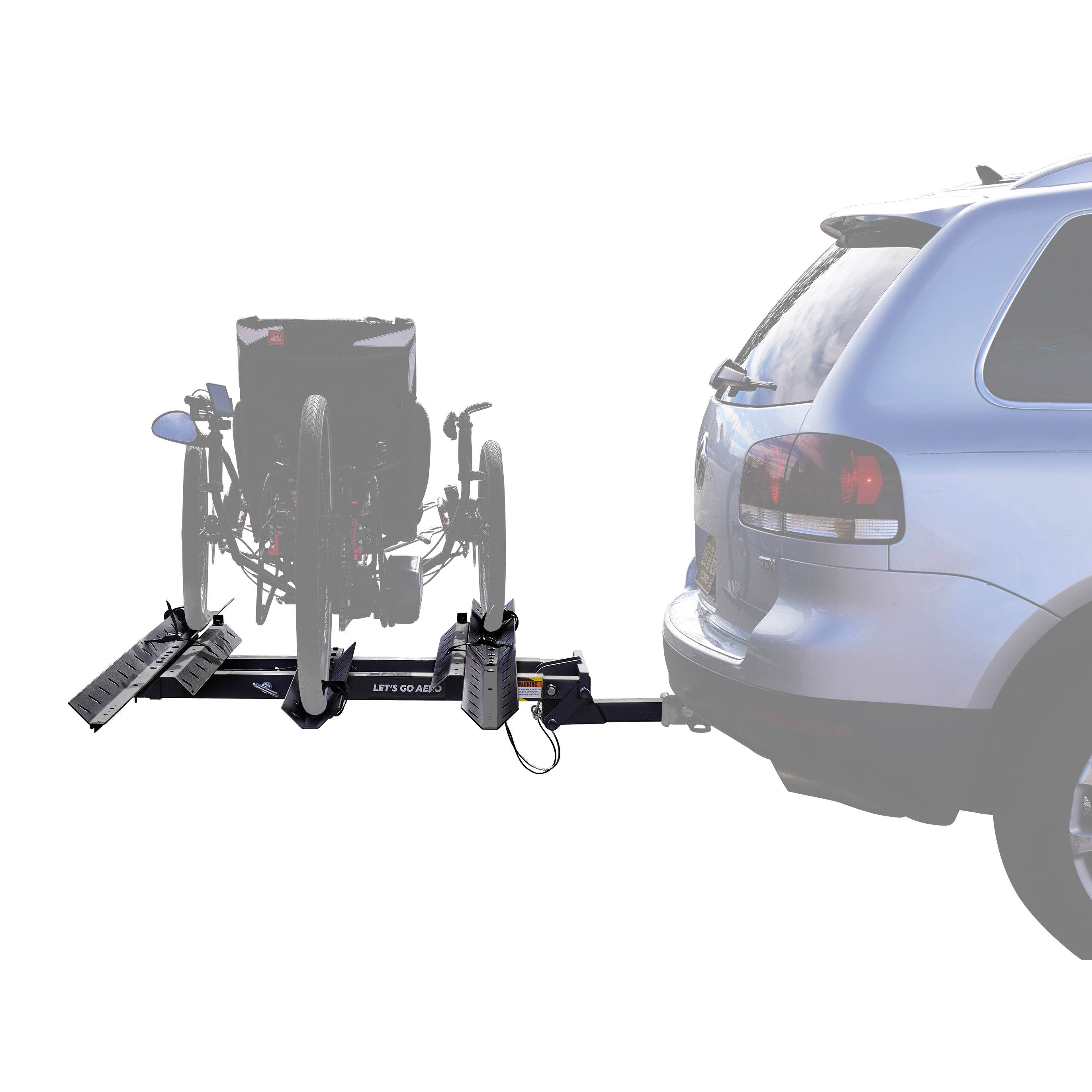

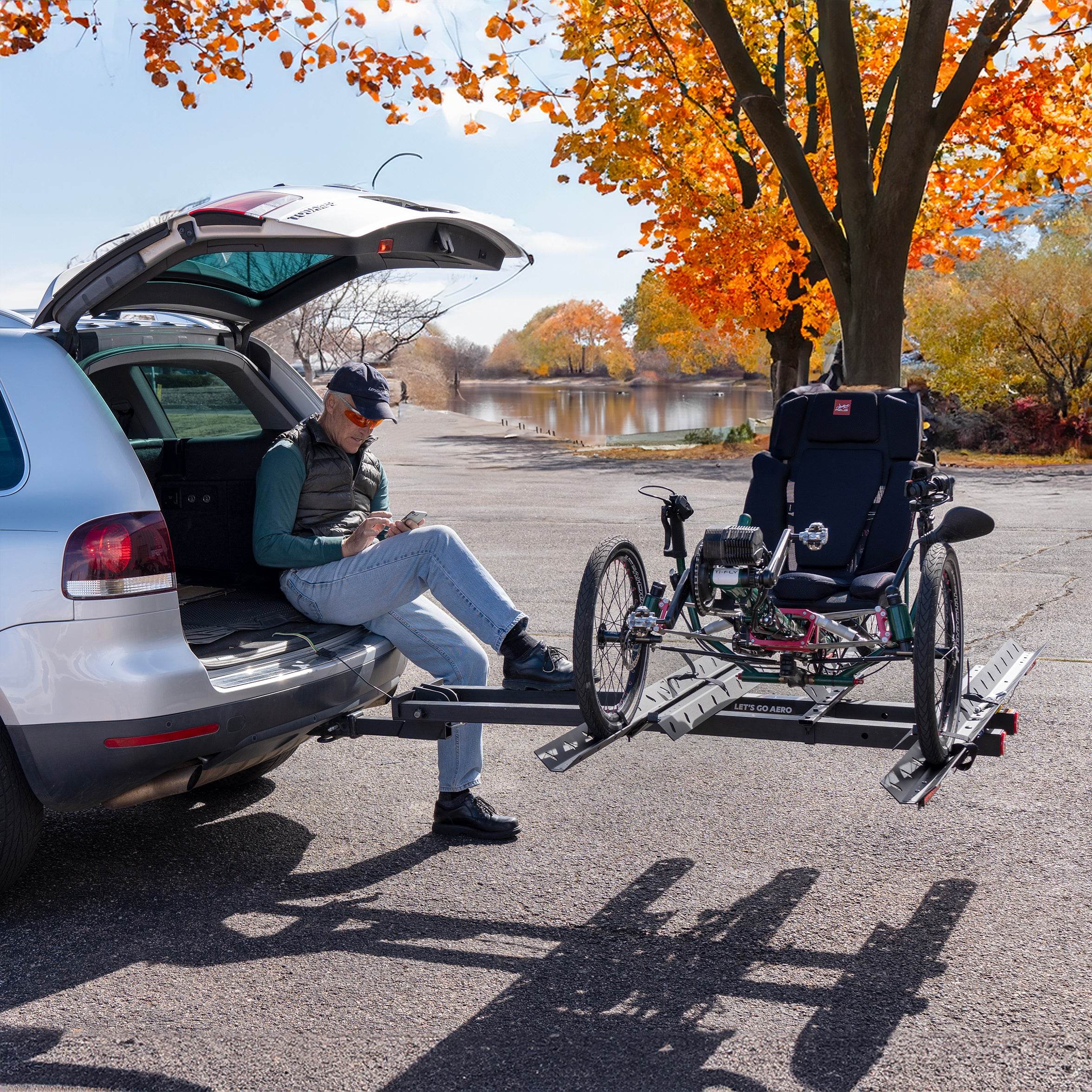

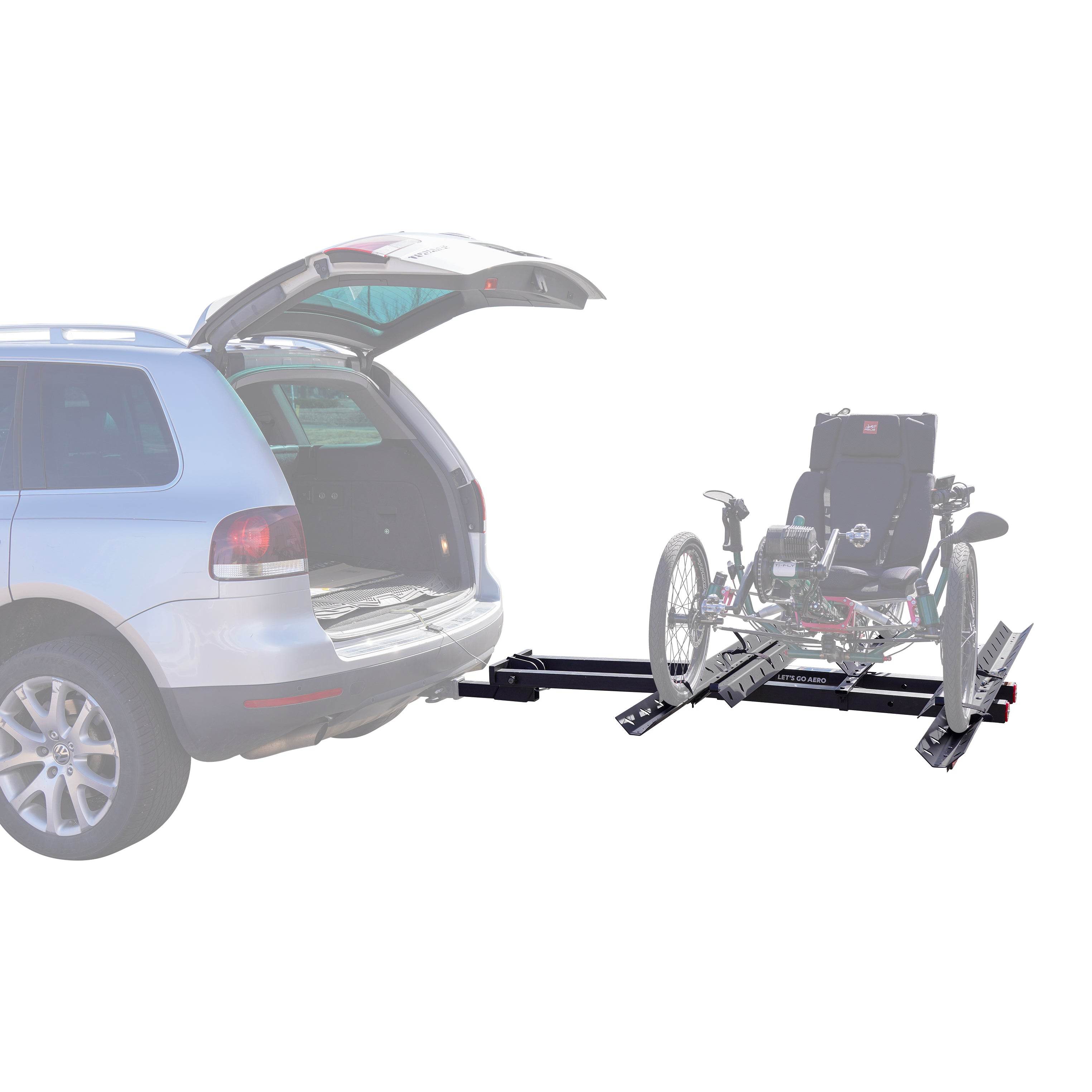

Product Images (click to enlarge) TriQuad Image 1 TriQuad Image 2 TriQuad Image 3
TriQuad Image

TriQuad

SKU: #B02691

DOWNLOAD THE MANUAL
